BLACKMAGIC Ursa studio fibre converter (b-CINEURSANWFRSTUD)

10% off	~~$5,439.50~~ $4,895.55(AUD inc. Tax) Qty NO STOCK - BACK ORDER

Overview
Specifications
Accessories

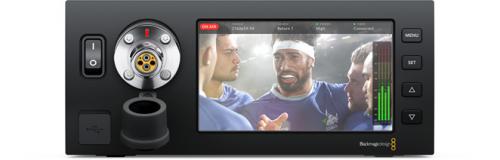

Work with remote cameras up to 2 km away from your studio or outside broadcast truck using SMPTE fiber. The Blackmagic Studio Fiber Converter converts SDI video, audio, and remote camera control connections into a single optical fiber cable, which connects to a Blackmagic Camera Fiber Converter attached to a remote camera. All video and data are transmitted using standard IP for extremely low latency broadcast quality video. You get 12G-SDI for an HD or Ultra HD camera feed and 3 independent HD return feeds, along with standard connections for camera control, PTZ, two dual channel talkback intercoms, tracker talkback, tally and a 5 inch LCD screen for monitoring camera and return feeds. The Blackmagic Studio Fiber Converter also provides power for your remote cameras and accessories.

Connections

Optical Fiber Input

1x SMPTE Hybrid Fiber Optic
with Female SMPTE 304 connector.

SDI Video Input

3x 12G SDI Return feeds with Program,
Camera Control, Tally, Genlock and Intercom on Return 1.

SDI Video Output

2x 12G SDI for Ultra HD up to 60p.

Talkback Audio

SDI Channels 15 and 16 for Production,
Analogue in and out supported via 25-pin connector for Production and Engineering talkback support.

Balanced XLR Audio Outputs

4x camera analogue audio outputs.

Optical Fiber Outputs

1x Optical I/O via 10 Gb-E
(not currently active).

Computer Interface

1x USB-C.

tandards

HD Video Standards

720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60

Ultra HD Video Standards

2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60

SDI Compliance

SMPTE 259M, SMPTE 292M, 296M,
372M, 424M Level B, 425M.

Audio Sampling

Television standard sample
rate of 48Khz, 24 bit A/D conversion.

Video Sampling

4:2:2

Color Precision

10-bit

Color Space

REC 709, REC 2020.

Multiple Rate Support

SDI switches between HD,
3G-SDI, 6G-SDI and 12G-SDI.

No accessories for this product.
