EPSON P20070 64"printer` (PEIP-20070)
|
$16,608.46(AUD inc. Tax)
|
|
|

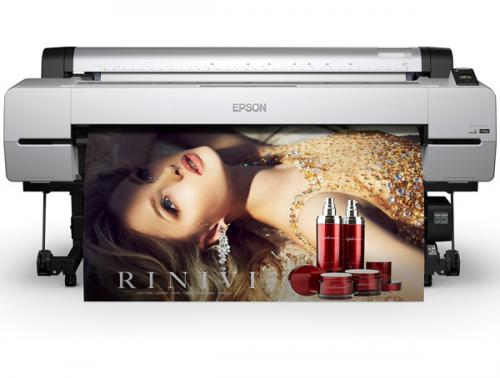

The SureColor Production 20070 is a 64" (1,626mm) Large Format Printer that is designed for medium-high volume graphic, indoor POS and poster printing. It supports a wide range of roll and sheet based media and features an all new PrecisionCore MicroTFP print head with Variable Sized Droplet Technology™ for output with superior resolution, gradations and colour density. It uses Epson UltraChrome® Pro all-pigment aqueous ink for quality colour and premium B&W output that is consistent, predictable and durable. The SC-P 20070 Cartridges feature an extra-large capacity for extended operation with a low cost per print due to the new PrecisionCore printhead and reduced running costs. The printer ships with an output bin for cut sheets as well as an optional Auto-Take-Up system for continuous roll to roll production.
- Superior Print Quality – Epson 2400x1200dpi PrecisionCore Micro TFP print head with VSDT for consistent and predictable output in ultra-high resolution with superior half tones and an optimised ink density.
- Superior Colour – 10 cartridge Epson UltraChrome Pro ink enables print with a high dMax and a wide colour gamut.
- Superior B&W – produces gallery quality black-and-white images with dedicated Photo & Matte Black ink lines for output on different media types.
- Good Image Stability – prints dry quickly to become water and scratch resistant. Output can be stored for extended periods with excellent lightfastness*.
- Flexible Operation – supports a wide range of media with fast print speeds. Handles roll based stock up to 64" (1,626mm) wide and sheets up to Super B0 and above (including A0). Supports board stocks up to 1.5mm thick, can print edge-to-edge and full borderless supported by the new media feeding system. Ships with retractable output basket.
- Easy to Use – 2.7" Colour LCD control panel with integrated help as well as high visibility individual ink indicator lights. Spindle based roll media loading with adjustable tension, auto media management system and a heavy duty auto cutter.
- Reduced Production Costs – flexible interfacing, operates with reduced power consumption and accepts large, cost-effective cartridges up to 700ml. Requires minimum maintenance and is supplied in various configurations with an optional Postscript, Auto Take-Up system, and user selectable warranty / support packages. Compatible with a wide range of design, production, workflow management and RIP software.
|
SIZE
|
| Max Print Width |
64 inch (1,626mm) wide |
| Max Sheet Size |
Super B0 |
|
PRINT TECHNOLOGY
|
| Print Head |
PrecisionCore™ Micro TFP head |
| Print Modes |
Uni & Bi-directional |
| Print Technology |
VSDT, auto head alignment, auto/manual nozzle checking, auto cleaning, ink repelling coating |
| Nozzle Configuration |
800 per colour |
| Channels |
10 |
| Max Resolution |
2400 x 1200dpi |
| Min Droplet Size |
3.5pl |
|
INK SYSTEM
|
| Family |
Epson Ultrachrome® Pro |
| Type |
Aqueous all-pigment |
| Colours |
 10 |
| Cartridge Size |
700ml |
|
PERFORMANCE (A1 sheet)
|
| Draft |
300 x 300dpi |
0.4 minutes |
| Normal |
300 x 600dpi |
1 minute |
| Fine* |
600 x 600dpi |
1.9 minutes |
| Super Fine* |
1200 x 1200dpi |
3 minutes |
 Figures represent print times on Plain and Premium Photo(*) paper. Print speeds are engine only with total throughput time dependant on workflow configuration, paper type, software, file format / size, print resolution, ink coverage, networking, and other factors. |
|
MEDIA SUPPORT
|
| Format |
Roll and cut sheet |
| Size |
Roll: Width 254 (min) to 1626mm (max) Length 279 to 15,000mm, Diameter 170mm (max) Max weight 24kg Cut sheets: Width 210 (min) to 1118mm (max) Length 279 (min) to 1580mm (max) |
| Thickness |
0.08-0.5mm roll / 0.08-1.5mm sheet |
| Min Margins |
0mm top, left, right & bottom roll / 3mm top, 0mm left & right, 14mm bottom sheet |
| Loading |
Top manual sheet and top roll (spindle style with dual tension settings) |
| Handling |
Heavy-duty rotary auto-cutter & Media Barcode System |
| Manual Double Sided Printing |
Please refer to user guide, and contact Epson or your authorised dealer before selecting any media for this purpose in order to check suitability. |
| Output |
Front manual paper basket (able to hold one Super B0 print with a maximum length of approx. 1,580mm) and optional Auto Take-Up unit |
|
OPERATION
|
| Control Panel |
2.7" Colour LCD |
| Interface |
High Speed USB 2.0
Ethernet 100Base-TX / 1000Base-T |
| Included Software |
Printer Driver, Epson Manual, Epson LFP Remote Panel 2, EpsonNet Config, Epson Software Updater, Epson Network Utilities |
| OS Compatibility |
Mac OS X10.6.8 or later, Windows XP/Vista/7/8/8.1 (32/64bit) or later |
| Software Compatibility |
Compatible with a wide range of design, production, workflow management and RIP software |
| Memory |
1.5GB |
| Language |
ESC/P Raster |
|
ENVIRONMENTAL
|
| Operational Temp |
10° to 35° C (15-25° C recommended) |
| Operational Humidity |
20 to 80% with no condensation (40-60% recommended) |
| Power Supply |
100 - 240 V, 50 Hz - 60 Hz AC, 5A |
| Power Consumption |
95W Operating / 2.8W Sleep (1000 Base-T) |
| Operating Noise |
51.1dB |
|
PHYSICAL
| |
| Printer (no ink) |
2415 x 976 x 1168mm (WxDxH), 171Kg |
| Recommended Operational Space |
2.6 x 1.6 x 1.3m (WxDxH) |
| Packaging |
Printer, Stand & Starter Ink: 2.71 x 0.99 x 1.07m, 300Kg
(Important: Box must be shipped straight & level) |
|
WHAT'S IN THE BOX
|
| Printer, Stand, Power Cord, Set of 110ml Inks (note 30-60% may be used during initialisation), 1 x Spindle, 3 x Maintenance Tank, Output basket, Installation / Safety manual, Utility software & User manual (CD) |
|
CONFIGURATION OPTIONS
|
| C11CE20401 |
Printer with 1 Year On-Site Warranty** |
| SCP200703Y |
Printer with 2 Year CoverPlus On-Site Service Pack (total 3 yrs cover)** |
| SCP200705Y |
Printer with 2 x 2 Year CoverPlus On-Site Service Packs (total 5 yrs cover)** |
| SCP20070P1Y |
Printer + Postscript, 1 Yr On-Site Warranty** |
| SCP20070P3Y |
Printer + Postscript, with 2 Yr CoverPlus On-Site Service Pack (total 3 yrs cover)** |
| SCP20070P5Y |
Printer + Postscript, with 2 x 2 Yr CoverPlus On-Site Service Packs (total 5 yrs cover)** |
| SCP20070PA1Y |
Printer + Postscript + ATU, 1 Yr On-site Warranty** |
| SCP20070PA3Y |
Printer + Postscript + ATU, with 2 Yr CoverPlus On-Site Service Pack (total 3 yrs cover)** |
| SCP20070PA5Y |
Printer + Postscript + ATU, with 2 x 2 Yr CoverPlus On-Site Service Packs (total 5 yrs cover)** |
|
ACCESSORIES & OPTIONS
|
| C12C932201 |
Auto Take-up Unit |
| C12C890121 |
Optional Roll Paper Belt |
| C12C932231 |
Additional Roll Adaptor |
| C13S210040 |
Replacement Auto Cutter Blade |
| C13T619300 |
Replacement Maintenance Tank |
| C13S090013 |
Cleaning Stick |
| C12C848031 |
HDD 320GB |
| 1YWSCP20070 |
Additional 1Yr CoverPlus Onsite Service Pack (P20070)** |
| 2YWSCP20070 |
Additional 2Yr CoverPlus Onsite Service Pack (P20070)** |
|
** CoverPlus Service Packs enable basic warranty cover to be extended. One or more Service Packs can be ordered in conjunction with the various printer configurations &/or options to enable cover for 1, 2, 3, 4 and 5 year periods (total cover cannot exceed 5 years). Service and support is only provided for product supplied through Epson Australia or Epson New Zealand. This facility is provided in conjunction with the Authorised Large Format Reseller through which the product is ordered. Limitations apply to the provision of warranty upgrades and on-site service. Regional locations and certain installation situations may attract additional charges. Service may be restricted or limited when equipment is used outside of specification &/or with non-Epson consumables. For full details on coverage, terms and limitations please review the warranty terms listed on this web-site and contact Epson or one of our Authorised Large Format Resellers if you have questions or concerns.
Usage Conditions
Epson products are designed to give highly reliable use and long life when used according to specifications. With any product or device used in situations where human life may be involved or at risk, Epson advises that you should take all necessary steps to ensure the suitability of your Epson product for inclusion in your system, and recommends that you include fail-safe procedures and redundancy support or backup equipment in your system, to maintain the maximum safety margin and optimum system reliability. Examples include but are not limited to ⚊ do not interfere with any electrical components within the device, do not use items supplied with the product for purposes other than as intended by Epson (ie mains cords, inks, CDs, plastic wrapping), do not make modifications to the product, take care with the use of 3rd party consumables, consult Epson if you have any questions or concerns.
|
