APUTURE Amaran LS600STD led light (LL-ALS600DSTD)

3%
off
$1,799.00 $1,745.02(AUD inc. Tax)
Qty
NO STOCK - BACK ORDER
Help
Bookmark and Share

Related Items

No related items.

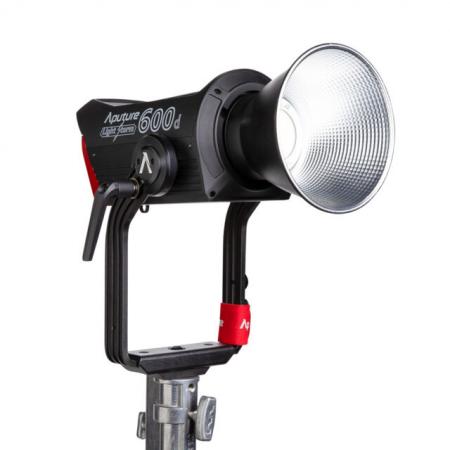

LS 600d Pro Light Storm Daylight LED Light is a powerful COB LED fixture with many power, output and control options. The company compares the output with a 1200W HMI. The 55° Hyper Reflector gives very high Lux readings. 5600K color temperature with a high CRI/TLCI rating of 96

The light also has a myriad of wireless control methods, such as the included 2.4 GHz remote, the Sidus Link mobile app, and the built-in wireless DMX control.There are four dimming curves: Linear, Exponential, Log, and S-Curve, to ensure accuracy regardless of your chosen brightness level. While you can make adjustments locally on the fixture, you can also make them wirelessly at a long distance via these methods excellentif you mount lights overhead or in hard to reach places.

Technical Specifications

CCT 5600K±200K
CRI ≥96
TLCI ≥96
CQS ≥94
SSI (D56) ≥72
TM-30 RF (Average) 92
TM-30 RG (Average) 102
Beam Angle (No Accessories) 105°
Beam Angle (LS 600 Series Hyper Reflector) 55°
Beam Angle (F10 Fresnel) 15° ~ 45°
Lumens 62,187lm
Max Power Output ≤600W
Max Power Consumption ≤720W
Max Operating Current 8A Max
Operating Voltage (Power Supply) 100V~240V, 50Hz/60Hz
Operating Voltage (Battery): V-Mount / Gold Mount (Two Batteries) | Half Output 12.5V-16.8V (14.4/15A) 22V-33.6V (26V/8.5A, 28.8V/7.5A)
Operating Voltage (Battery): 3-Pin XLR (48V DC) | Full Output 48V/15A
DC Input 1x 48V 3-Pin XLR DC Input (720W)
Operating Temperature -20°C ~ 45°C / -4°F ~ 113°F
Dimming 0-100%; Linear, Exponential, Logarithmic, S-Curve
Control Methods On-board, 2.4GHz, Sidus Link (Sidus Mesh™), 5-Pin XLR DMX512 In & Out
Wireless Operating Range (Bluetooth) ≤80m
Wireless Operating Range (2.4GHz) ≤100m
Screen Type OLED
Firmware Upgradeable USB (FAT16/FAT32), Sidus Link
Cooling Method Active Cooling
Cable Type (Head Cable) LS 600 Series 5-Pin Weatherproof Head Cable (3m)
Cable Type (Max Head Cable Length) 7.5m
Cable Type (Power Cable) Neutrik® powerCON TRUE1 TOP AC Cable (6m)
Construction Material Magnesium Alloy
Accessory Mount Bowens Mount
Tilt Angle 360°
Mounting 16mm / 28mm | 5/8in (Baby Pin) / 1.125in (Junior Pin)
Carrying Case Telescoping Handle, Wheels
Estimated LED Lifetime (L70) 50,000H
Est. Color Shift Over Lifetime (CCT) 2% (6,000H)
Est. Max Flicker-Free FPS 2,000 FPS
Certifications CE, FCC, ROHS, KC, NCC, PSE, BIS

Dimensions

Lamp Head w/o Yoke 30.8 x 15.61 x 15.01cm / 12.13 x 6.15 x 5.91in
Lamp Head w/ Yoke 30.8 x 25.03 x 45.6cm / 12.13 x 9.85 x 17.95 in
Control Box (V-Mount) 28.2 x 15.4 x 9cm / 11.1 x 6.1 x 3.54in
Control Box (Gold Mount) 28.2 x 15.4 x 9cm / 11.1 x 6.1 x 3.54in
Lightning Clamp 10.35 x 8.74 x 12.5cm/ 4.07 x 3.44 x 4.92in
Rolling Case 60.7 x 40 x 37.2cm / 23.9 x 15.75 x 14.65in

Weight

Lamp Head w/ Yoke 4.69kg / 10.34lbs
Control Box (V-Mount) 3.24kg / 7.14lbs
Control Box (Gold Mount) 3.24kg / 7.14lbs
Lightning Clamp 670g / 1.48lbs
Total w/ Case 16.71kg / 36.84lbs

Photometrics

CCT Distance Light Only LS 600 Series Hyper Reflector F10 Fresnel (Flood) F10 Fresnel (Spot)
5600K 1M 22,150 lux / 2,058 fc 98,500 lux / 9,150 fc 89,200 lux / 8,289 fc 224,200 lux / 20,836 fc

3M 2,600 lux / 242 fc 8,500 lux / 790 fc 11,440 lux / 1,063 fc 29,300 lux / 2,723 fc

5M 1,020 lux / 95 fc 3,000 lux / 280 fc 4,260 lux / 395 fc 10,580 lux / 983 fc
