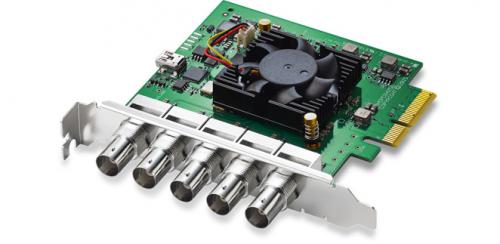

BLACKMAGIC Deckline Duo 2 (b-BDLKDUO2)
Featuring 4 independent 3G-SDI connections, DeckLink Duo 2 is a PCI Express capture and playback card that supports SDI formats in SD and HD up to 1080p60! You get the flexibility of 4 separate capture or playback cards in one! Plus, it’s completely customizable so it’s perfect for media play-out systems, multi screen digital signage servers, real time multi channel capture systems and more!
ConnectionsSDI Video Inputs4 x bidirectional 12-bit SD/HD independently configurable as either Input or Output. SDI Video Outputs4 x bidirectional 12-bit SD/HD independently configurable as either Input or Output. SDI Audio Inputs16 channels embedded in SD and HD. SDI Audio Outputs16 channels embedded in SD and HD. Sync InputTri-Sync or Black Burst. Computer InterfacePCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCI Express slots.
Supported CodecsAVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10‑bit 4:4:4 SoftwareSoftware IncludedMedia Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux. Internal Software UpgradeFirmware built into software driver. Loaded at system start or via updater software. Physical InstallationPCI Express 4 lane generation 2, compatible with 4 and 8 lane PCI Express slots on Mac OS, Windows and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements. Software ApplicationsDaVinci Resolve Other supported applications include: Video StandardsSD Video Standards525i59.94 NTSC, 625i50 PAL HD Video Standards720p50, 720p59.94, 720p60 SDI ComplianceSMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M, ITU-R BT.656 and ITU-R BT.601. SDI Metadata SupportRP 188/SMPTE 12M-2 and closed captioning. Audio SamplingTelevision standard sample rate of 48 kHz and 24 bit. SDI Color Precision8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes. 12-bit RGB 4:4:4 only supported in playback. SDI Video Sampling8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes. 12-bit RGB 4:4:4 only supported in playback. Color SpaceREC 601, REC 709, REC 2020 HDR SupportHDR static metadata packing, HLG and PQ transfer characteristics. ProcessingColorspace ConversionHardware based real time. HD Down ConversionBuilt in, high quality software down converter on playback and capture. Down converted SD selectable between letterbox and anamorphic 16:9 styles. HD Up ConversionBuilt in, high quality software up converter from SD to 720HD or 1080HD on input. Selectable between 4:3 pillarbox, 14:9 zoom and 16:9 zoom. Cross ConversionBuilt in, high quality software cross conversion from 720HD to 1080HD, 1080HD to 720HD on playback. Real Time EffectsDaVinci Resolve, Final Cut Pro X internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects. Physical Specifications
Operating SystemsMac 11.1 Big Sur, Power RequirementsPower Consumption10 Watts Environmental SpecificationsOperating Temperature5° to 40 ° C (32° to 104° F) Storage Temperature-20° to 45° C (-4° to 113° F) Relative Humidity0% to 90% non-condensing
No accessories for this product. |
     |
||||||
