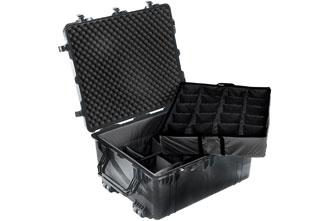

PELICAN 1690 w/foam tranp black case (dp-1690B)

• RETRACTABLE EXTENSION HANDLE
• 4 STRONG POLYURETHANE WHEELS WITH STAINLESS STEEL BEARINGS
• Easy open Double Throw latches
• Open cell core with solid wall design - strong, light weight
• O-ring seal
• Automatic Pressure Equalization Valve
• Large 2-person fold down handles
• Stainless steel padlock protectors
• 3 level Pick N Pluck™ with convoluted lid foam
• Personalized nameplate service available
• Lifetime Guarantee of Excellence
• WATERTIGHT, CRUSHPROOF, AND DUST PROOF

INTERIOR (L x W x D)

30.13" x 25.13" x 15.36" (76.5 x 63.8 x 39 cm)

EXTERIOR (L x W x D)

33.43" x 28.4" x 17.65" (84.9 x 72.1 x 44.8 cm)

BODY: Polypropylene
FOAM: 1.3 lb Polyurethane
LATCH: ABS
PURGE BODY: ABS
LID O-RING: Polymer
PURGE VENT: 3 Micron Hydrophobic Non-Woven PET
PINS: Stainless Steel
PURGE O-RING: 70 Shore Nitrile

COLORS

*OD Green available upon request (minimum quantities apply)

CONFIGURATIONS

INTERIOR (L x W x D)

30.13" x 25.13" x 15.36" (76.5 x 63.8 x 39 cm)

EXTERIOR (L x W x D)

33.43" x 28.4" x 17.65" (84.9 x 72.1 x 44.8 cm)

INTERIOR CUBIC VOLUME:

6.73 cubic feet (190.58 cubic decimeter)

This case has internal wheel and/or handle wells that will reduce usable area, please review for each application.

LID DEPTH:

2.86" (7.3 cm)

BOTTOM DEPTH:

12.14" (30.8 cm)

TOTAL DEPTH:

15" (38.1 cm)

WEIGHT WITH FOAM:

43 lbs (19.5 kg)

WEIGHT W/O FOAM:

34 lbs (15.42 kg)

BUOYANCY:

410 lbs (185.97 kg)

RANGE TEMPERATURE

-40 / 210° F (-40 / 99° C)

FOAM PROPERTIES

Lid Layer 23" (7.6 cm) ConvoluteBase Layer 11.25" (3.2 cm) PadBase Layer 33.65" (9.3 cm) DicedBase Layer 43.65" (9.3 cm) DicedBase Layer 53.65" (9.3 cm) Diced

MOBILITY OPTIONS

Retractable Handle Yes
Number of Wheels 4
Personalized Nameplate Service Available

CERTIFICATES

• IP67 (1 meter submersion for 30 minutes)
• Def Stan 81-41/STANAG 4280
